Protect the Condenser, Protect the System: Why Proper Mini-Split Condenser Mounting Matters

Outdoor mini-split condensers are a critical component of any ductless HVAC system, responsible for releasing heat absorbed from inside the building. However, these units are often installed directly on ground-level pads or simple stands, exposing them to a variety of environmental hazards. Flooding, snow accumulation, dirt, debris, vibration, and accidental impacts can all significantly reduce the lifespan and performance of the condenser—and by extension, the entire HVAC system.

To safeguard your investment and ensure reliable operation over the long term, the MRCOOL MB176 Wall Bracket Mount offers a practical, robust, and professional-grade solution. This wall-mounted bracket elevates the condenser from the ground, stabilizes it, and improves airflow, all while enabling easier service access.

The Challenges of Ground-Level Mini-Split Condenser Installation

Many mini-split condensers are installed at ground level, often on concrete pads or metal stands. While this is common practice, it presents several recurring problems that HVAC professionals and homeowners should be aware of:

• Exposure to Water and Flooding: Condensers placed directly on the ground are vulnerable to standing water during heavy rain or flooding events. Water intrusion can damage electrical components and accelerate corrosion.
• Snow and Ice Buildup: In colder climates, snow accumulation around the condenser can block airflow or cause freezing damage. Ice buildup on the unit increases stress on components and reduces efficiency.
• Dirt, Debris, and Pest Intrusion: Ground-level units are more likely to collect leaves, grass clippings, mud, and nesting materials from pests such as rodents or insects, all of which can clog coils or damage internal parts.
• Vibration Transfer and Noise: When mounted on unstable or uneven pads, vibration from the running compressor transmits into the building structure. This can cause annoying rattling noises and potential structural damage over time.
• Uneven or Cracked Pads: Concrete pads can settle unevenly or crack due to ground movement, leading to condenser misalignment. This misalignment stresses refrigerant lines and compressors, possibly causing premature system failure.
• Limited Service Access: Units mounted close to the ground or in cramped spaces make routine maintenance and repairs more difficult and time-consuming for technicians.

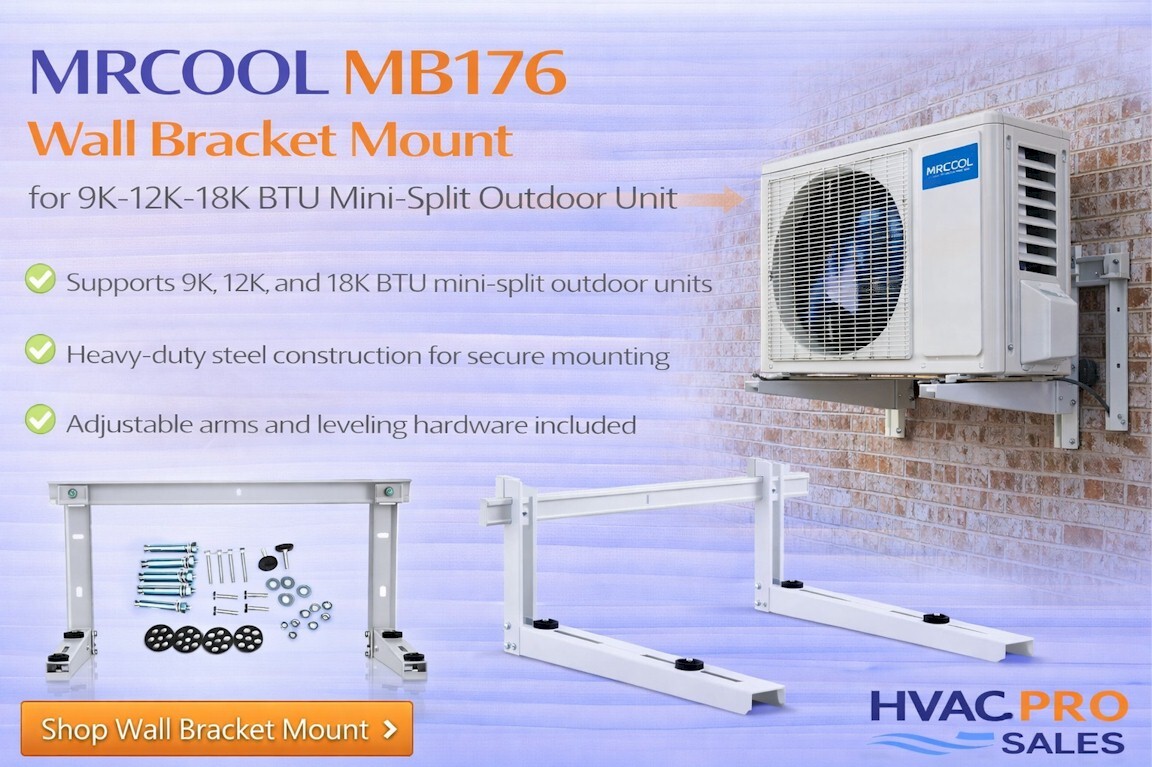

Introducing the MRCOOL MB176 Wall Bracket Mount

The MRCOOL MB176 Wall Bracket Mount is specifically engineered to address these common issues. It is designed to securely anchor mini-split outdoor units to masonry or structural walls, lifting the condenser above the ground and locking it into a stable, level position. This design enhances protection, reduces noise, and extends equipment life.

Key Features and Benefits

• Elevates Condenser Above Environmental Hazards: By mounting the unit several inches above the ground, the bracket protects it from flooding, snow drifts, dirt, and debris.
• Heavy-Duty Steel Construction: Constructed from powder-coated steel, the MB176 can reliably support the weight of most common mini-split condensers without bending or flexing.
• Vibration-Dampening Design: The mounting system incorporates rubber vibration isolators or pads to minimize noise transmission into the building structure.
• Improved Airflow: Elevating the condenser encourages better airflow around coils and fins, which improves heat exchange efficiency and helps maintain optimal operating temperatures.
• Cleaner, Professional Appearance: Wall-mounted units installed with the MB176 bracket result in a neater, more aesthetically pleasing installation that meets professional standards and code requirements.
• Easier Access for Maintenance: Technicians appreciate the improved working space around the unit, which simplifies coil cleaning, electrical inspections, and refrigerant servicing.

Step-by-Step Installation Guide for the MRCOOL MB176 Wall Bracket Mount

Proper installation is critical to achieving the full benefits of the MB176 bracket. Below is a detailed guide for HVAC contractors and advanced DIY installers:

1. Choose the Mounting Location: Select a solid, load-bearing wall made of concrete, masonry block, or structural wood framing. Avoid drywall or hollow partitions.
2. Confirm Unit Dimensions and Weight: Verify the condenser’s size and weight to ensure compatibility with the MB176 bracket specifications.
3. Mark Bracket Mounting Points: Hold the bracket against the wall at the desired height—ideally 6 to 12 inches above typical snow or flood levels. Use a level to ensure horizontal alignment and mark the anchor points.
4. Drill Anchor Holes: Use a hammer drill with appropriate masonry bits for concrete or block walls. For wood studs, pilot holes sized for lag bolts or heavy-duty anchors.
5. Install Anchors or Lag Bolts: Insert expansion anchors or lag bolts rated for the load. Ensure they are securely fastened and flush with the surface.
6. Attach the Wall Bracket: Bolt the MB176 bracket to the wall anchors. Double-check the level and alignment before tightening completely.
7. Place Vibration Pads: If included or recommended, install rubber vibration isolation pads on the bracket arms where the condenser will rest.
8. Mount the Condenser: Carefully lift the mini-split condenser onto the bracket, ensuring it sits securely and evenly.
9. Secure the Condenser: Use the supplied clamps, straps, or bolts to fasten the unit to the bracket, preventing any movement or vibration shifts.
10. Final Checks: Confirm the bracket and condenser are level, stable, and free from contact with adjacent surfaces that could transmit noise or damage the unit.

Best Use Cases for the MRCOOL MB176 Wall Bracket Mount

This mounting solution is especially valuable in the following scenarios:

• Flood-Prone or Snow-Prone Regions: Elevating the condenser effectively mitigates water damage or snow blockage risks.
• Urban and Compact Installations: Where ground space is limited or uneven, wall mounting optimizes available area and avoids clutter.
• Multi-Family and Apartment Buildings: Wall mounts reduce noise complaints from vibration and improve aesthetics in shared outdoor spaces.
• Retrofits and Repairs: Replacing cracked concrete pads or unstable metal stands with a wall bracket extends system longevity without complicated site work.

Additional Tips and Professional Considerations

• Always Mount Into Solid Structural Material: Ensure the bracket is anchored into concrete, masonry block, or framing studs using proper anchors rated for the weight and load.
• Level the Bracket Precisely: An uneven bracket causes condenser misalignment, leading to compressor stress, refrigerant line strain, and premature failure.
• Check Local Codes and Manufacturer Requirements: Confirm that the mounting method complies with local building codes and the mini-split manufacturer’s installation guidelines.
• Use Vibration Isolators: Incorporate vibration dampening materials between the unit and bracket to reduce noise transmission and structural wear.
• Plan for Service Access: Leave at least 12–24 inches of clearance around the condenser for routine maintenance and emergency repairs.

Frequently Asked Questions (FAQ)

1. Can the MB176 bracket support all mini-split condenser models?

The MB176 is designed to support most common mini-split condensers up to a specified weight limit (typically around 176 lbs). Always verify the condenser’s weight and dimensions against the bracket’s specifications before purchase and installation.

2. Is it necessary to use vibration isolation pads with the MB176 bracket?

While not absolutely mandatory, vibration isolation pads or rubber grommets are highly recommended to reduce noise transmission and prevent metal-to-metal contact, which can cause rattling or premature wear.

3. How high should I mount the condenser off the ground?

Mounting height depends on your local climate and site conditions. A general recommendation is to elevate the unit at least 6 to 12 inches above the maximum expected snow or flood level to prevent water and snow damage.

4. Can I install the MB176 bracket on wood siding or stucco walls?

It is best to anchor the bracket into solid structural elements such as wood studs behind the siding or masonry backing. Avoid mounting directly into drywall or thin siding materials

---
